HDPE Pipes, Polyethylene (PE Pipe) are sorted by strength classified according to the intensity of the earlier technological

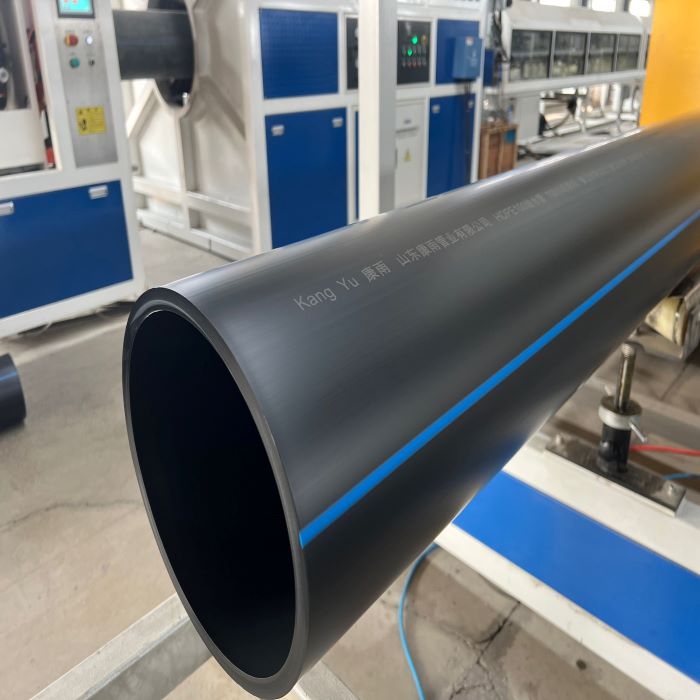

HDPE Pipes, Polyethylene (PE Pipe) are sorted by strength classified according to the intensity of the earlier technological developments. high density polyethylene pipe pressure classes that can be made between Pn4-Pn32 and the production of the desired diameter and size of HDPE pipes system has undergone many tests in 1950, particularly in the carriage of drinking water. After the result of these tests of HDPE Pipes, if all reports are positive then it has no harmful effect on human life. One of today’s most widely used pipe is HDPE pipes systems which is economical, easy in handling, efficient performance, easy method of coupling,and quite useful.PE100 Hdpe Pipe Water Project is the mostly used pipe among the drinking water system. It also have HDPE STEEL REINFORCED PIPE. This kind of HDPE pipe can bear PN30 pressure.
Product details
PE100 | 0.4MPa | 0.5MPa | 0.6MPa | 0.8MPa | 1.0MPa | 1.25MPa | 1.6MPa | 2.0MPa | 2.5MPa |
Outside Diameter | PN4 | PN5 | PN6 | PN8 | PN10 | PN12.5 | PN16 | PN20 | PN25 |
SDR41 | SDR33 | SDR26 | SDR21 | SDR17 | SDR13.6 | SDR11 | SDR9 | SDR7.4 | |
Wall Thickness (en) | |||||||||
20 | - | - | - | - | - | - | 2.0 | 2.3 | 3.0 |
25 | - | - | - | - | - | 2.0 | 2.3 | 3.0 | 3.5 |
32 | - | - | - | - | 2.0 | 2.4 | 3.0 | 3.6 | 4.4 |
40 | - | - | - | 2.0 | 2.4 | 3.0 | 3.7 | 4.5 | 5.5 |
50 | - | - | 2.0 | 2.4 | 3.0 | 3.7 | 4.6 | 5.6 | 6.9 |
63 | - | - | 2.5 | 3.0 | 3.8 | 4.7 | 5.8 | 7.1 | 8.6 |
75 | - | - | 2.9 | 3.6 | 4.5 | 5.6 | 6.8 | 8.4 | 10.3 |
90 | - | - | 3.5 | 4.3 | 5.4 | 6.7 | 8.2 | 10.1 | 12.3 |
110 | - | - | 4.2 | 5.3 | 6.6 | 8.1 | 10.0 | 12.3 | 15.1 |
125 | - | - | 4.8 | 6.0 | 7.4 | 9.2 | 11.4 | 14.0 | 17.1 |
140 | - | - | 5.4 | 6.7 | 8.3 | 10.3 | 12.7 | 15.7 | 19.2 |
160 | - | - | 6.2 | 7.7 | 9.5 | 11.8 | 14.6 | 17.9 | 21.9 |
180 | - | - | 6.9 | 8.6 | 10.7 | 13.3 | 16.4 | 20.1 | 24.6 |
200 | - | - | 7.7 | 9.6 | 11.9 | 14.7 | 18.2 | 22.4 | 27.4 |
225 | - | - | 8.6 | 10.8 | 13.4 | 16.6 | 20.5 | 25.2 | 30.8 |
250 | - | - | 9.6 | 11.9 | 14.8 | 18.4 | 22.7 | 27.9 | 34.2 |
280 | - | - | 10.7 | 13.4 | 16.6 | 20.6 | 25.4 | 31.3 | 38.3 |
315 | 7.7 | 9.7 | 12.1 | 15.0 | 18.7 | 23.2 | 28.6 | 35.2 | 43.1 |
355 | 8.7 | 10.9 | 13.6 | 16.9 | 21.1 | 26.1 | 32.2 | 39.7 | 48.5 |
400 | 9.8 | 12.3 | 15.3 | 19.1 | 23.7 | 29.4 | 36.3 | 44.7 | 54.7 |
450 | 11.0 | 13.8 | 17.2 | 21.5 | 26.7 | 33.1 | 40.9 | 50.3 | 61.5 |
500 | 12.3 | 15.3 | 19.1 | 23.9 | 29.7 | 36.8 | 45.4 | 55.8 | - |
560 | 13.7 | 17.2 | 21.4 | 26.7 | 33.2 | 41.2 | 50.8 | 62.5 | - |
630 | 15.4 | 19.3 | 24.1 | 30.0 | 37.4 | 46.3 | 57.2 | 70.3 | - |
710 | 17.4 | 21.8 | 27.2 | 33.9 | 42.1 | 52.2 | 64.5 | 79.3 | - |
800 | 19.6 | 24.5 | 30.6 | 38.1 | 47.4 | 58.8 | 72.6 | 89.3 | - |
900 | 22.0 | 27.6 | 34.4 | 42.9 | 53.3 | 66.2 | 81.7 | - | - |
1000 | 24.5 | 30.6 | 38.2 | 47.7 | 59.3 | 72.5 | 90.2 | - | - |
1200 | 29.4 | 36.7 | 45.9 | 57.2 | 67.9 | 88.2 | - | - | - |
1400 | 34.3 | 42.9 | 53.5 | 66.7 | 82.4 | 102.9 | - | - | - |
1600 | 39.2 | 49.0 | 61.2 | 76.2 | 94.1 | 117.6 | - | - | - |
COMPANY PROFILE:
Shandong Kangyu Pipe Industry Co., Ltd., founded in 2000, is a company specializing in the productions of PP-R,PE,PE-RT,PB plastic pipes and fittings. Located in Linyi, Shandong province, China, We devote ourselves continuously to international trade and supply pipeline dealers who come from all over the world with customized service. In order to build a modern factory, we invest in a series of professional mechanical equipments. Our company employs professional and experienced talents and focuses human resources on a complete system of management, operation and service. We provide our partners with professional and efficient one-stop service.

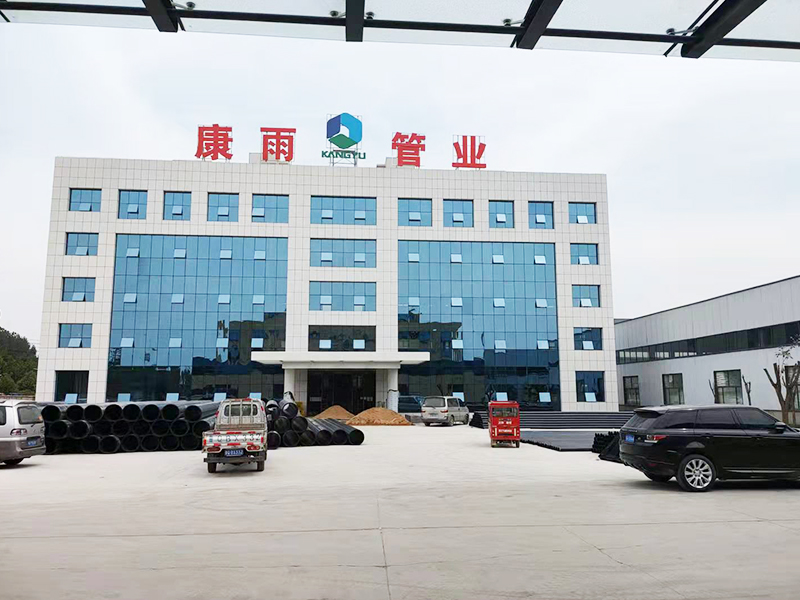

Company photo:

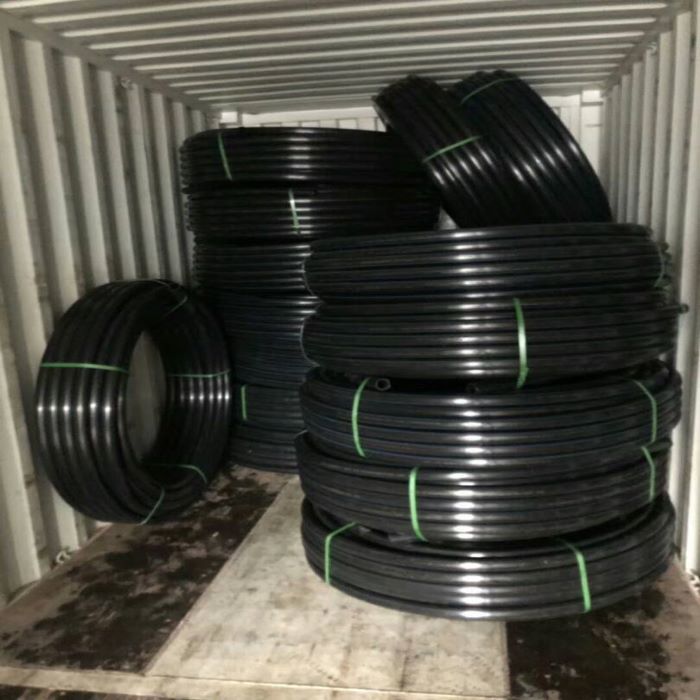

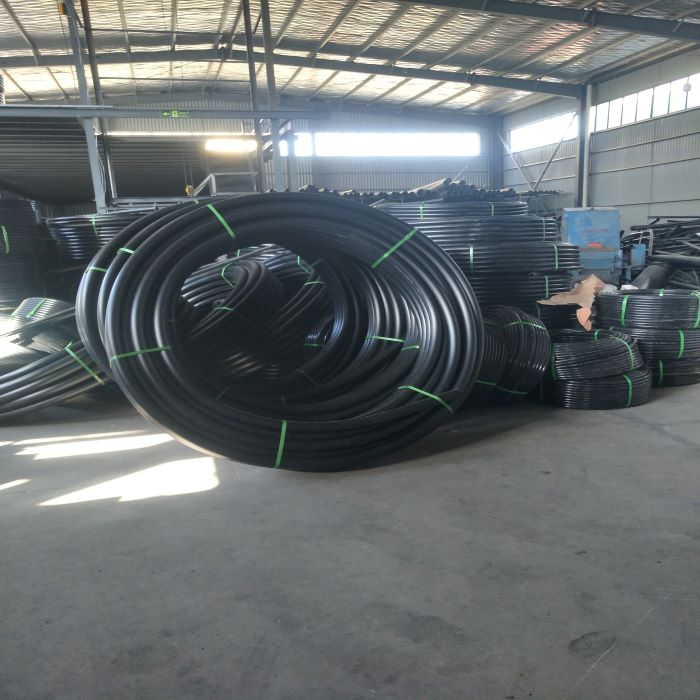

PRODUCT show：
