HDPE steel wire skeleton pipe is a new type of improved steel skeleton plastic composite pipe, which is also called SRTP pipe
HDPE steel wire skeleton pipe is a new type of improved steel skeleton plastic composite pipe, which is also called SRTP pipe It uses high-strength plastic steel wire skeleton and thermoplastic polyethylene as raw materials, steel wire winding mesh as the skeleton reinforcement of polyethylene plastic pipe, high-density polyethylene as the matrix, and high-performance HDPE modified bonding resin to closely combine the steel wire skeleton with the inner and outer layers of high-density polyethylene, so that it has excellent composite effect, and has the respective advantages of steel pipe and plastic pipe.
1.It has higher bearing strength and creep resistance.
2. it has more rigidity and impact resistance than ordinary pure plastic pipe, and is similar to the low linear expansion coefficient of steel pipe.
3. the inner wall is smooth without scaling, the flow friction resistance is small, the water conveyance capacity is large, and the energy consumption is reduced.
4. good corrosion resistance. The inner and outer layers of the pipe are plastic layers, which have the same excellent corrosion resistance as the plastic pipe.
5. light weight and convenient loading, unloading and transportation.
6. electrofusion connection is adopted, which is fast and convenient for construction, and the joint does not leak.
7. it is composed of steel and plastic, which overcomes the rapid stress cracking of plastic pipes.
8. it has good wear resistance and has a service life of 50 years under normal use.

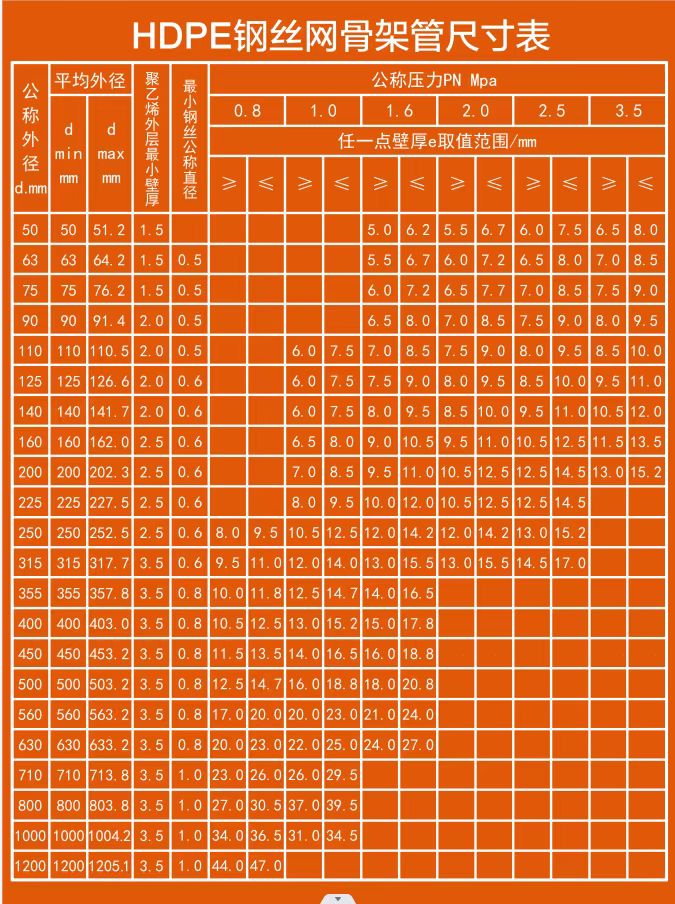

PIPE SIZE

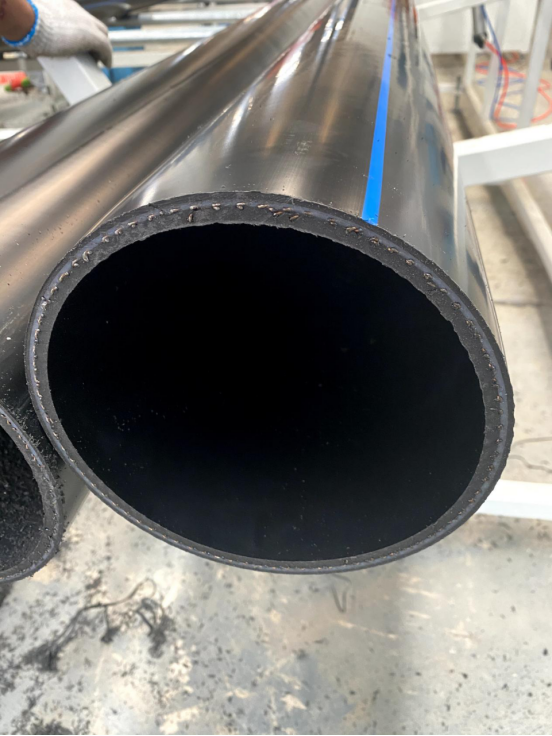

Product show:

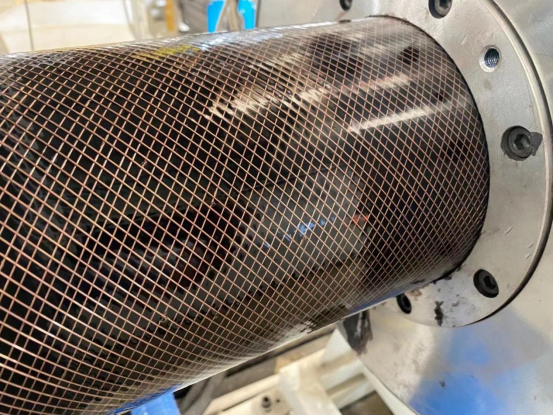

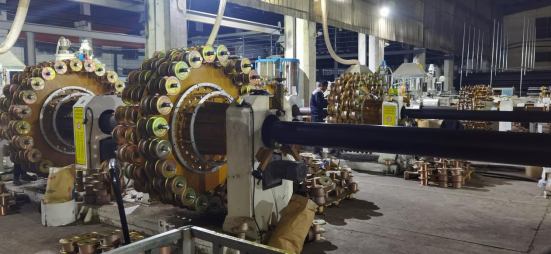

Production line:

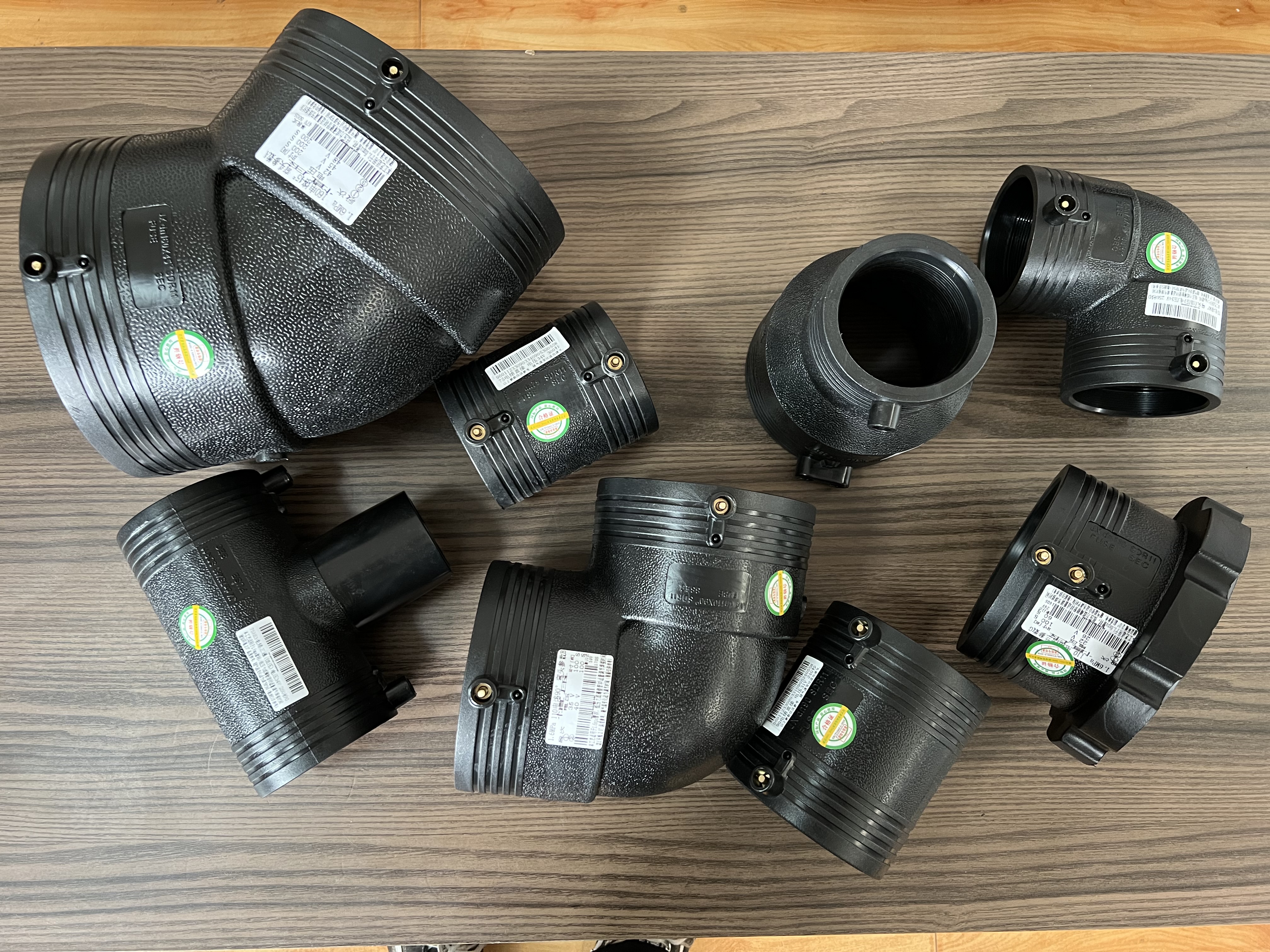

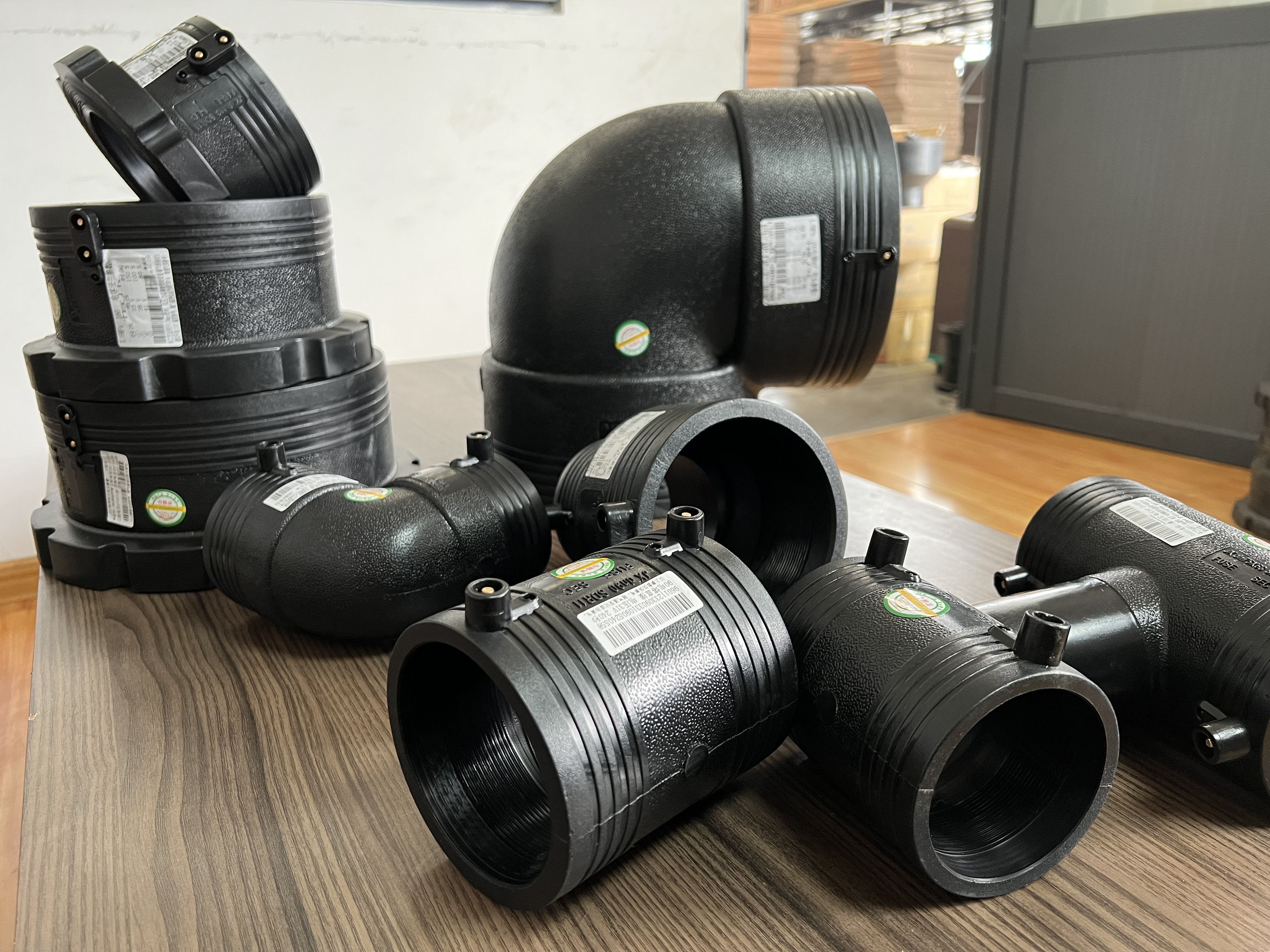

this pipe should connect with HDPE electric fusion fittings
